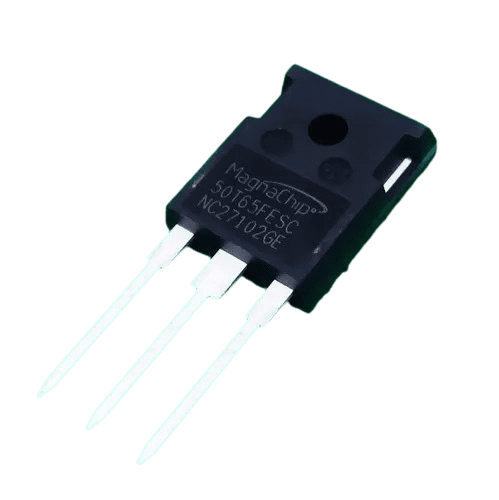

The 50T65 IGBT is a specialized Insulated Gate Bipolar Transistor utilized across diverse power electronic sectors, spanning motor drives, renewable energy installations, and welding apparatus. Its unique amalgamation of MOSFET-like swift switching and bipolar transistor-like current handling renders it indispensable for tasks demanding precise power management and regulation.
-3%
IGBT
50T65
Availability:
250 in stock
The 50T65 IGBT is a type of Insulated Gate Bipolar Transistor used in various power electronic applications, including motor drives, renewable energy systems, and welding machines. It combines the high-speed switching capability of a MOSFET with the high-current handling capability of a bipolar transistor, making it suitable for applications requiring efficient power switching and control.
Features
• Max Junction Temperature TJ = 175°C
• Positive Temperature Co−efficient for Easy Parallel Operating
• High Current Capability
• Low Saturation Voltage: VCE(sat) = 1.6 V (Typ.) @ IC = 50 A
• 100% of the Parts Tested for ILM
• High Input Impedance
• Fast Switching
• Tighten Parameter Distribution
• This Device is Pb−Free and is RoHS Compliant
Applications
- Solar Inverter
- UPS
- Welder
- Telecom
- ESS (Energy Storage Systems)
- PFC (Power Factor Correction)
Datasheet
₹115.00 ₹119.00
250 in stock
| Attribute | Details |
|---|---|
| Brand | SL |
| Part Number | 50T65 |
| Current | 1 |
| Voltage | 1 |
| Pin Count | Yes |
| Transistor Configuration | 1 |
| Channel Type | 1 |
Based on 0 reviews
Be the first to review “50T65”
