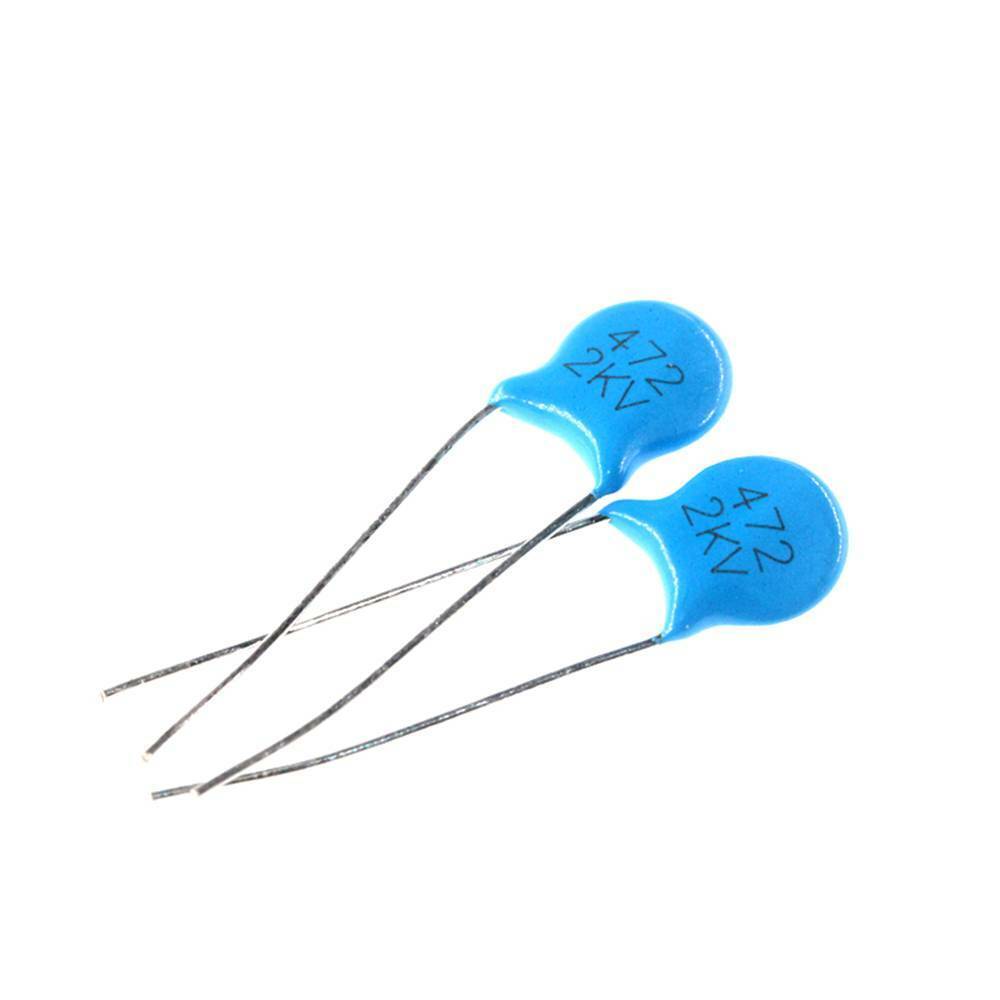

A ceramic capacitor is a type of non-polarized fixed capacitor constructed from alternating layers of ceramic and metal, where the ceramic material serves as the dielectric and the metal acts as the electrodes. Ceramic Disc Capacitors exhibit no polarity, allowing them to be connected in any direction. They are conducive to breadboarding and can be readily employed on perf boards.
-25%
| Attribute | Value |
|---|---|
| Dielectric | Ceramic Disc Capacitor |
| Capacitance | 4K7pF |
| Voltage | 2KV |
| Product Range | MC Series |
| Capacitance Tolerance | ± 20% |
| Capacitor Terminals | Radial Leaded |
| Lead Spacing | 10mm |
| Operating Temp. Min | -25°C |
| Operating Temp. Max | 85°C |
| Mounting Type | Through Hole |
| Size | 23 x 5 mm (LxW) |
| Weight | 19g |
Based on 0 reviews
Be the first to review “472PF-2kV”
